Here’s a step-by-step guide to installing ourLED Front Grille Lights. Easy installation, no drilling required. The high-intensity yellow beam improves visibility in rain, snow, or fog, helping to alert other drivers for a safer journey.

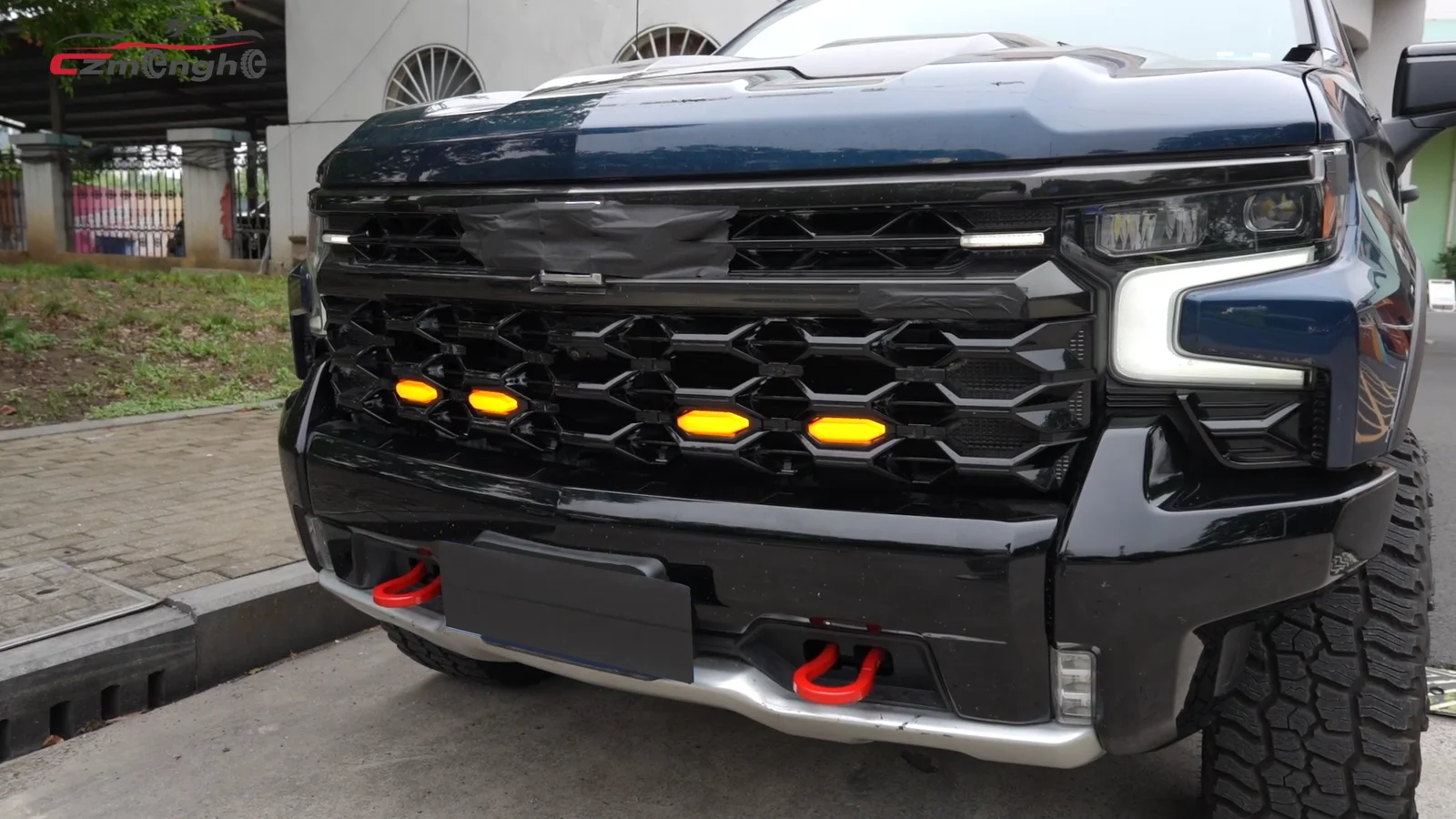

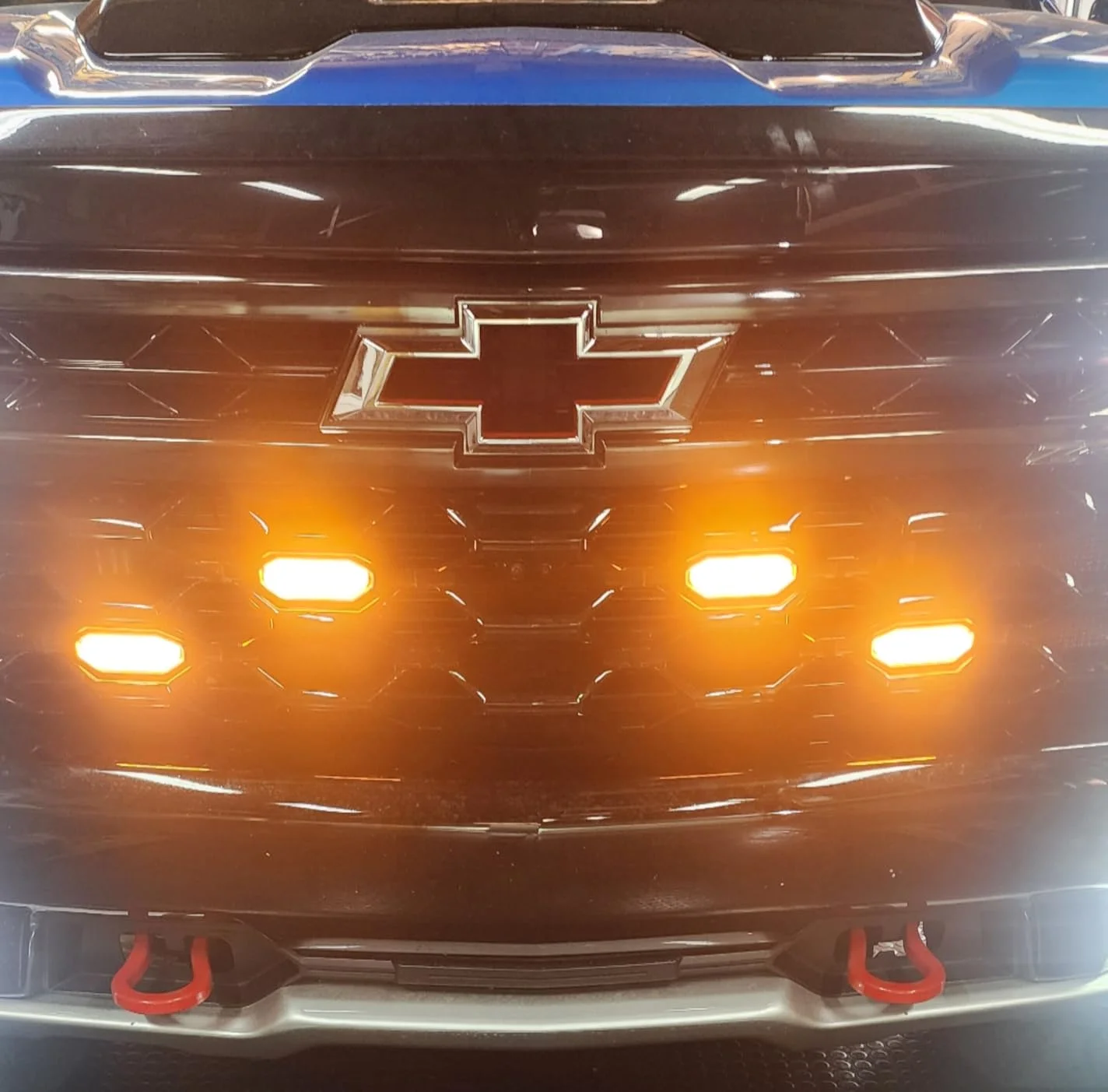

Check out the final result:

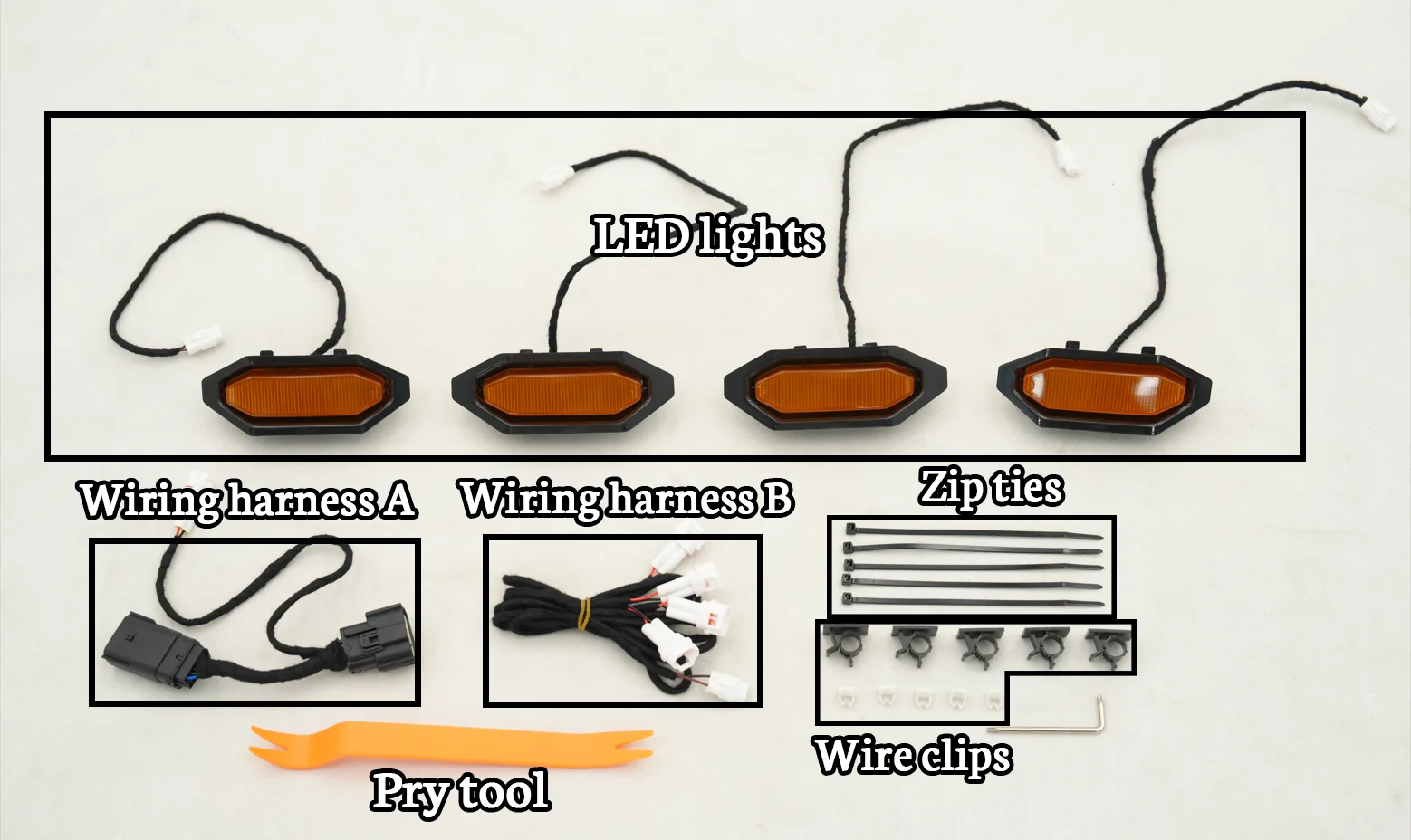

All components are shown below:
The Installation Process:
Step 1: Remove Factory Parts

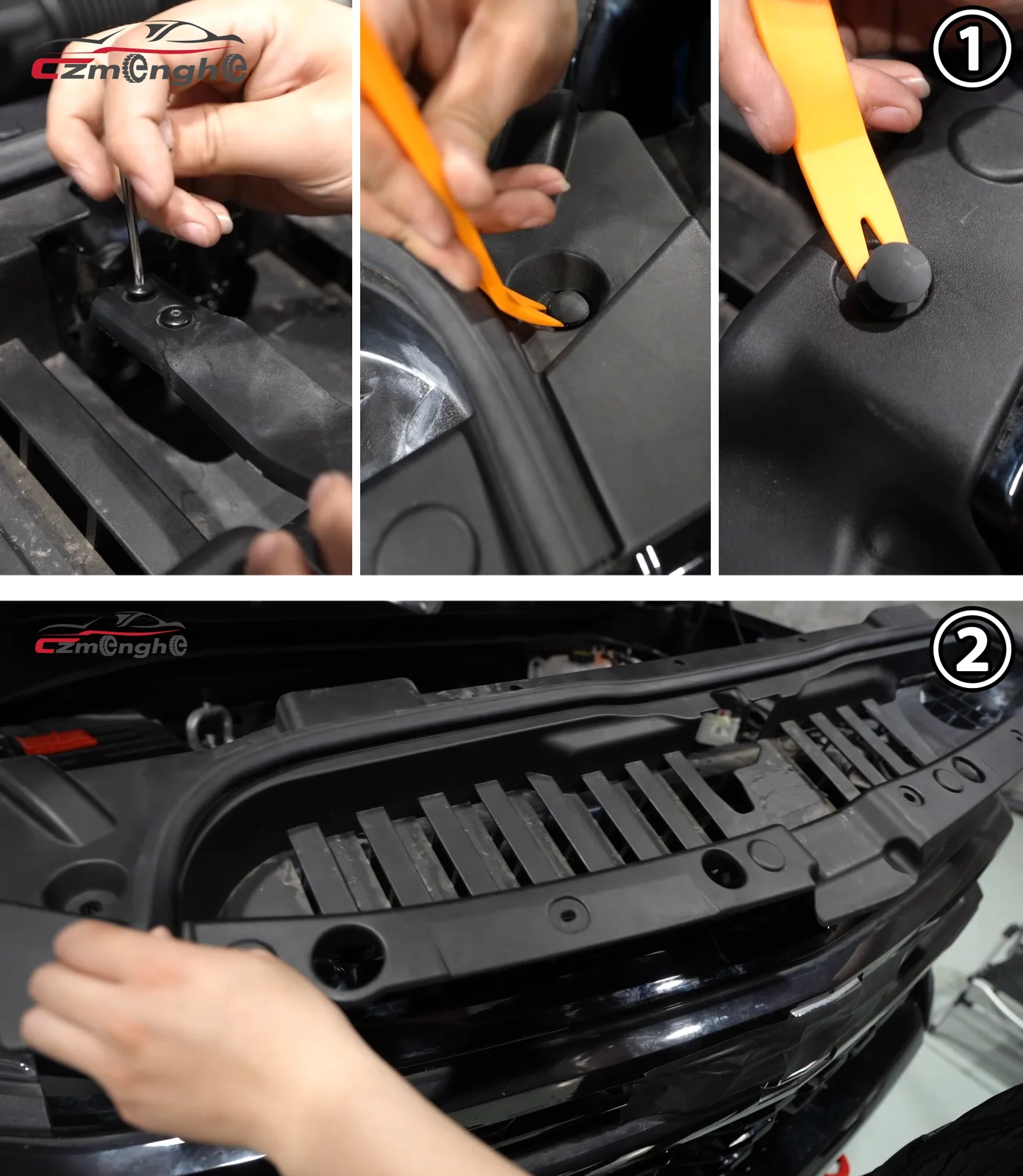

Remove the bolts and rubber plugs securing the factory grille panel (Fig. 1).Then, take out the mesh panel (Fig. 2).
Step 2: Connect the Wiring Harness

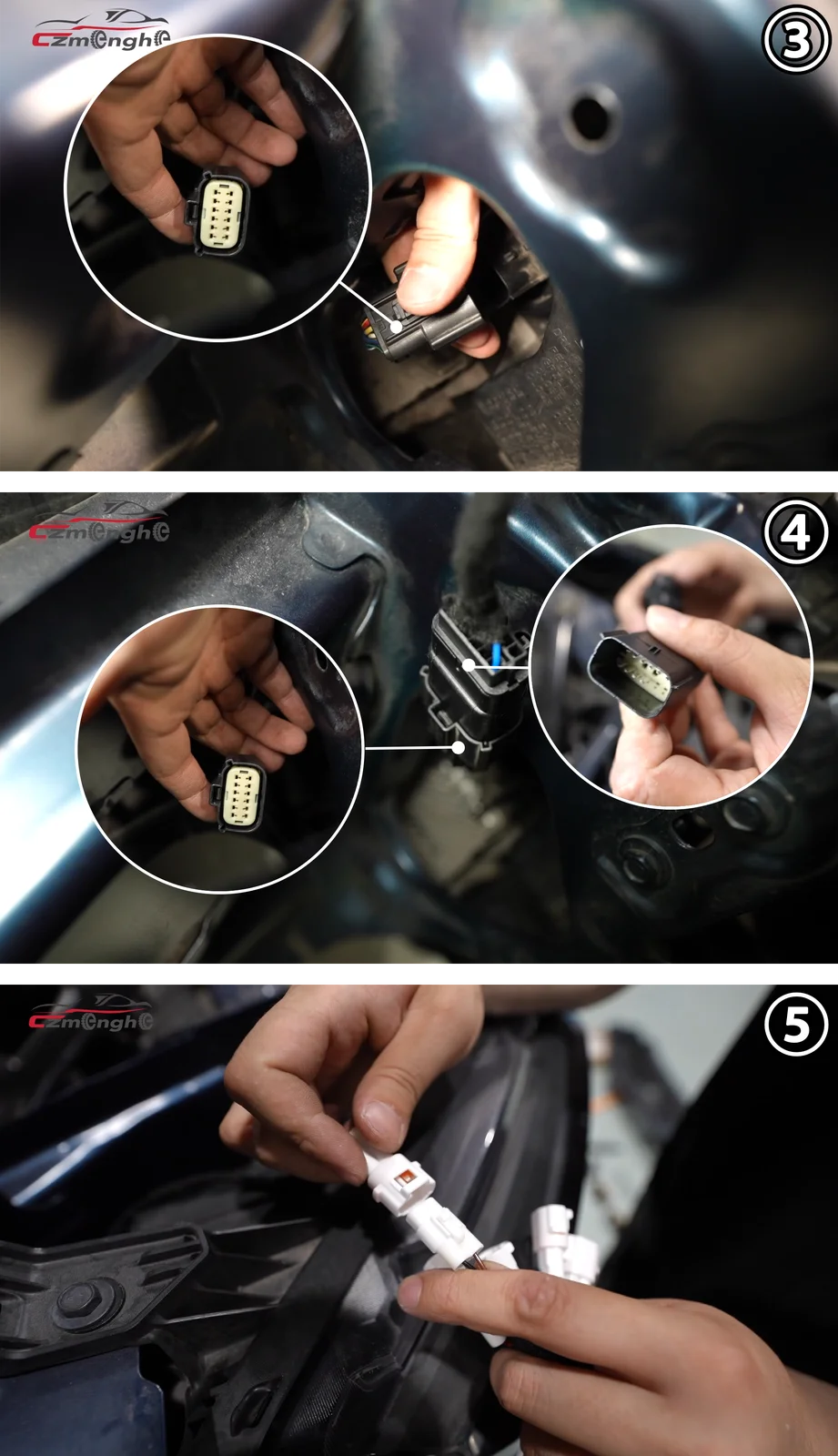

Unplug the original vehicle connector from the back of the headlight (Fig. 3).
Insert this original connector into the matching port on the wiring harness A (Fig. 4).
Plug the other end of the wiring harness A back into the vehicle's headlight socket.
Connect the plugs from the wiring harness B to the remaining ports on the wiring harness A (Fig. 5).
Step 3: Install Grill Lights

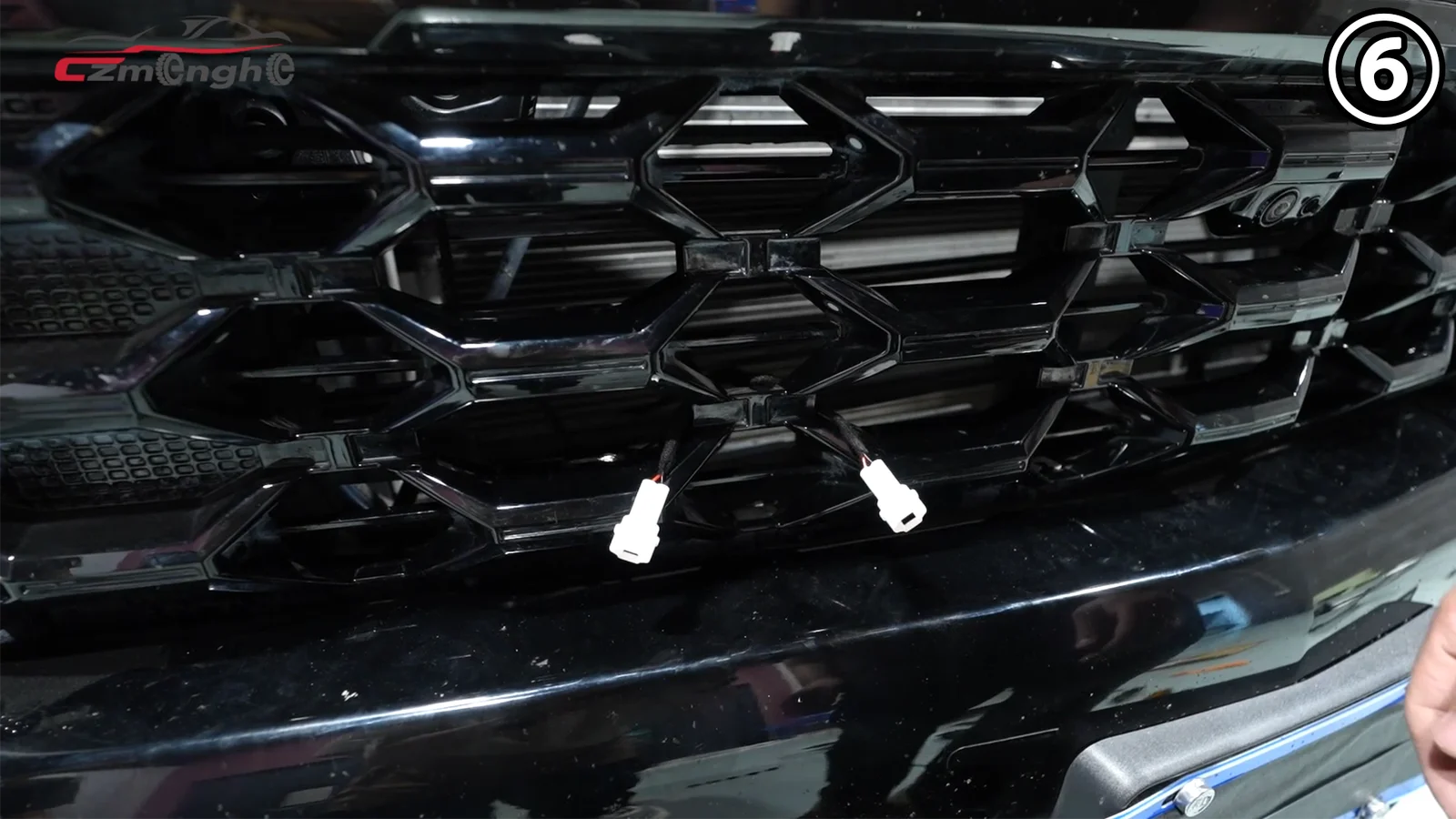

Route the wiring harness B through the grille and position it correctly (Fig. 6).

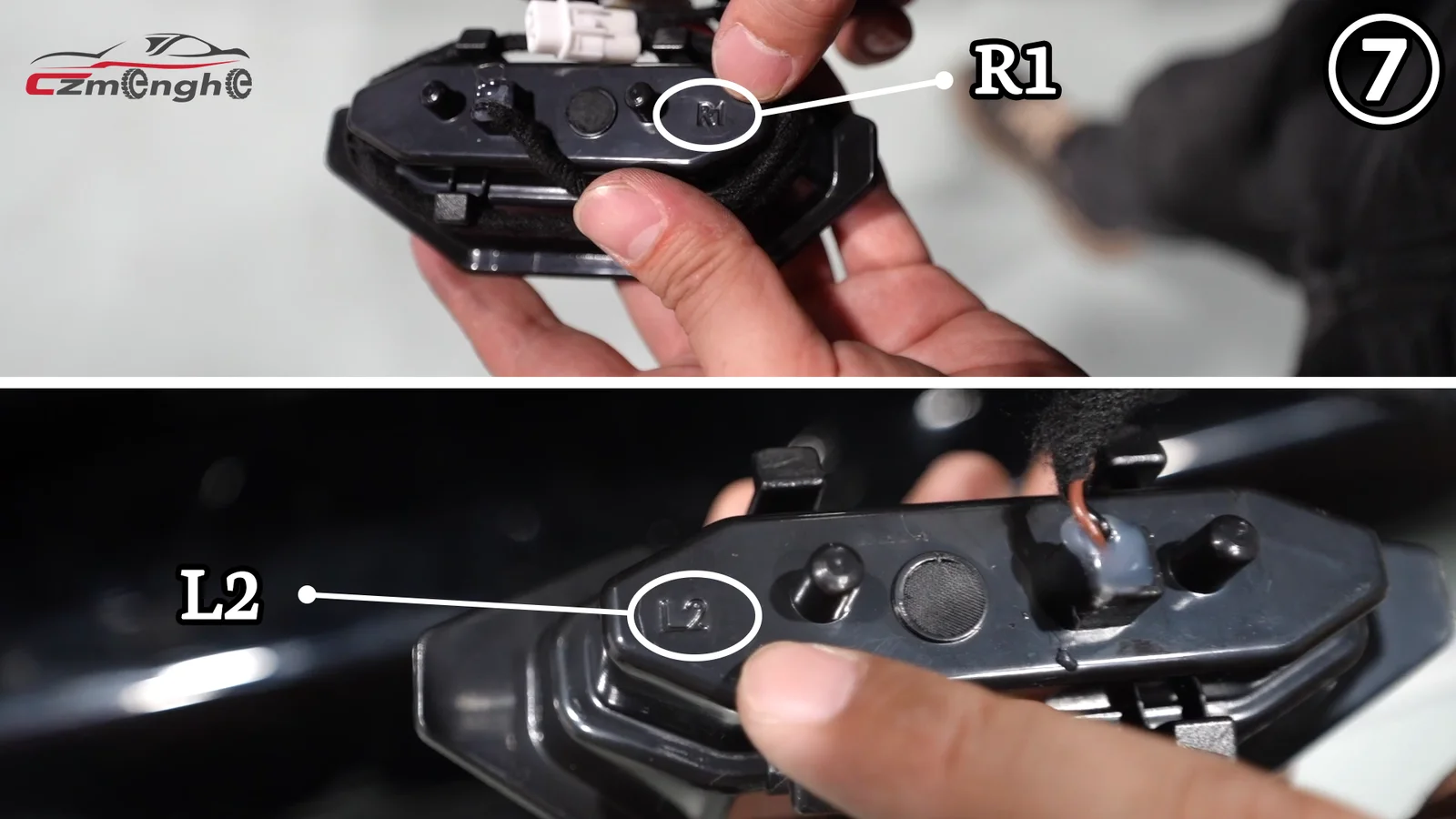

Connect the grill lights to Wiring Harness B. Each light is marked on the back with its specific installation position (Fig. 7).

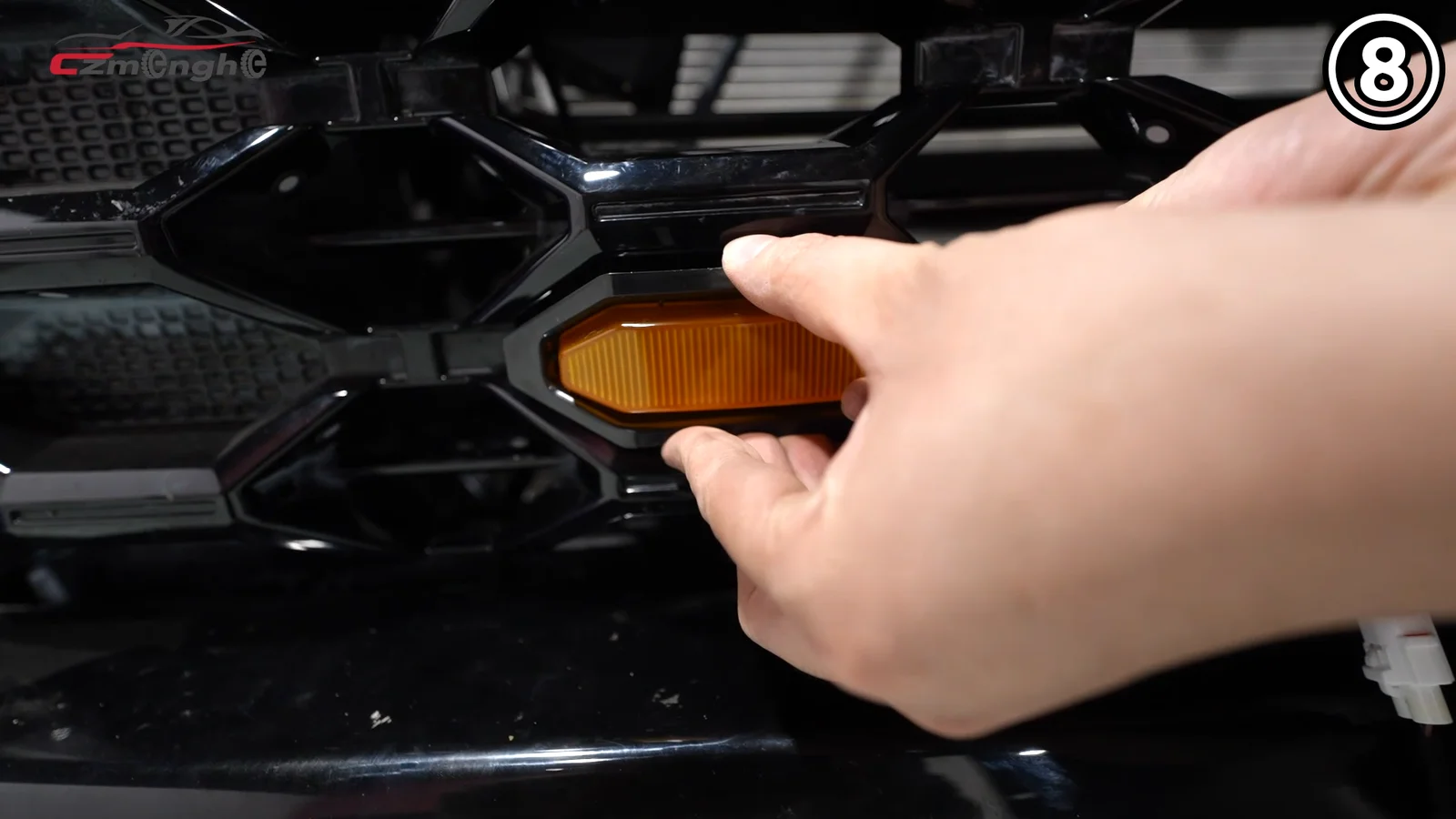

Press each light firmly into its designated location (Fig. 8).
Step 4: Secure Wiring with Clips

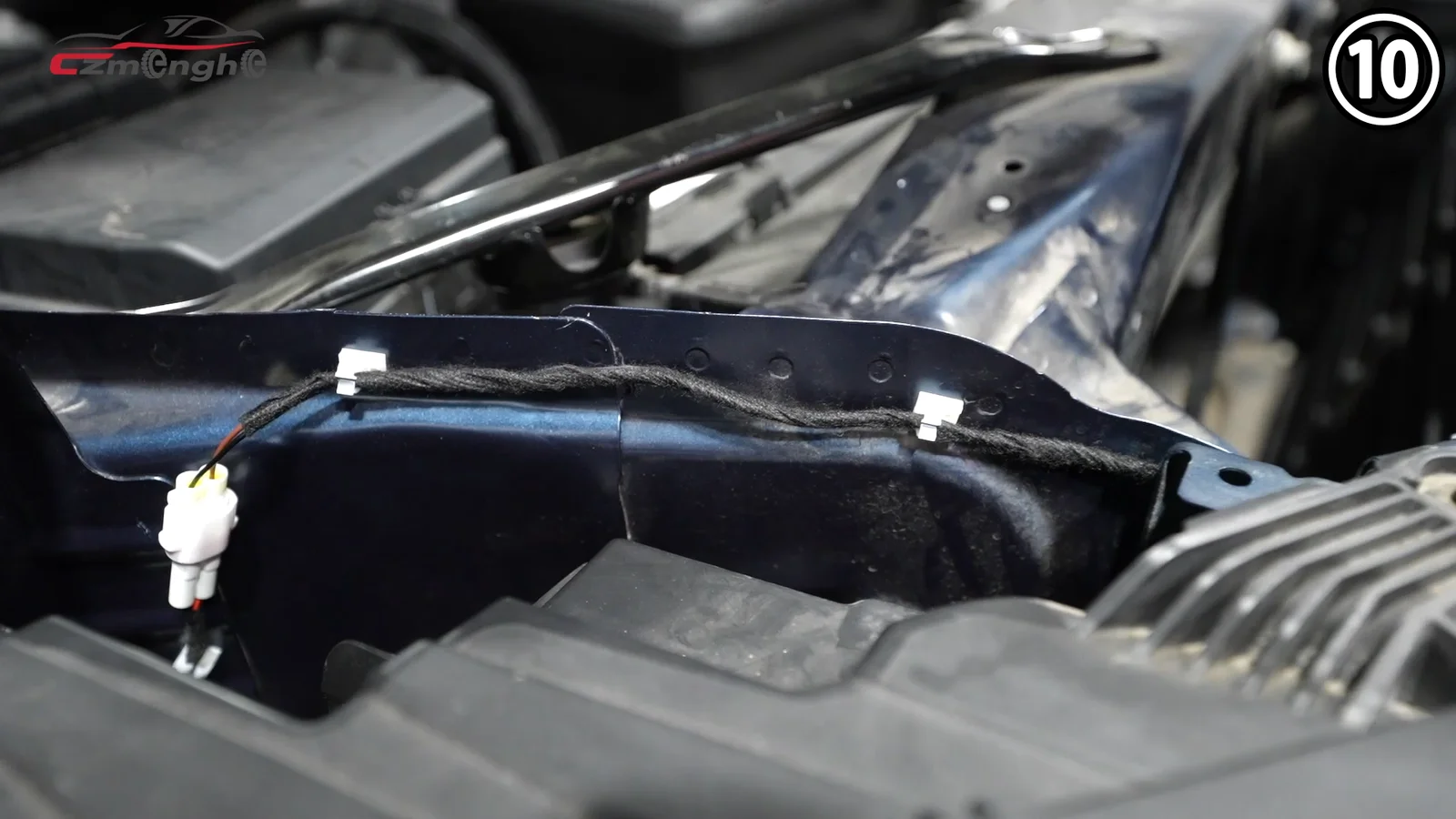

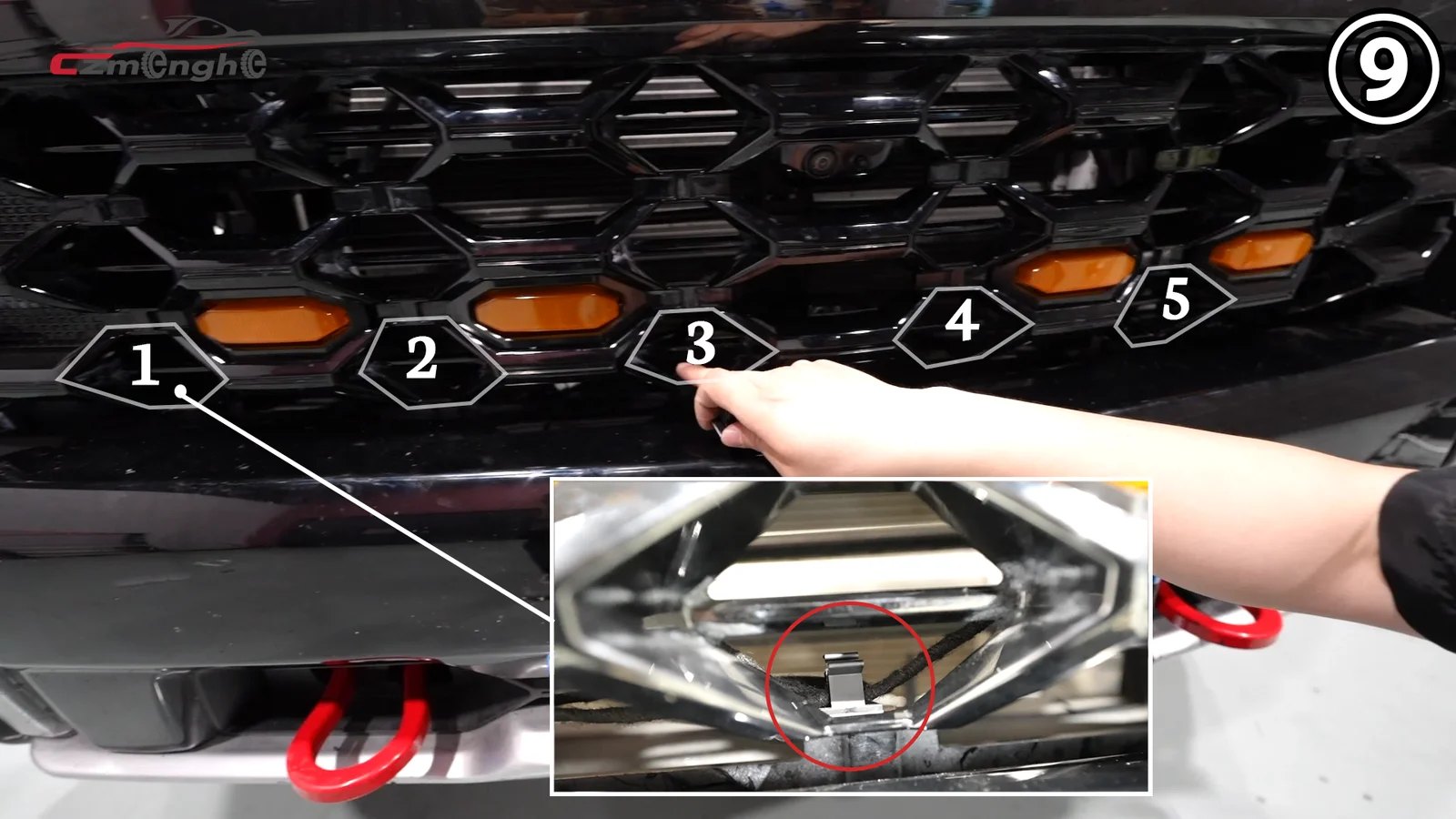

Peel off the backing from the black and white clips. Adhere them to the indicated areas as shown in the pic. Use the clips to secure the wiring in place (Fig. 9&10).
Step 5: Reassemble Vehicle and Test
Reinstall all original vehicle components that were removed earlier.
Reconnect the battery and test all light functions.
Still have questions? For a visual guide, check out the full video tutorial below.
