Diode Dynamics Ditch Lights Install

[ZR2EDDYB]

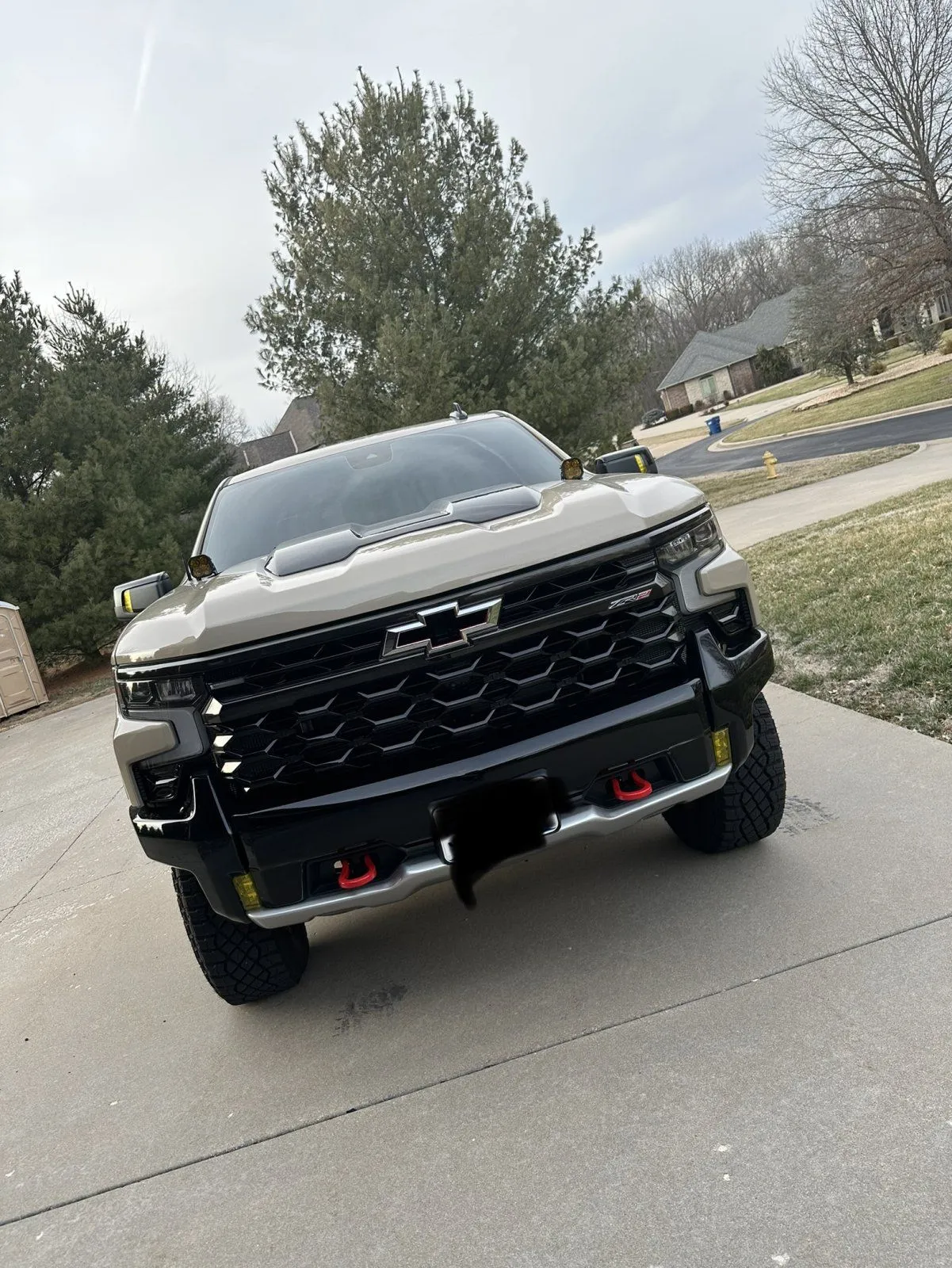

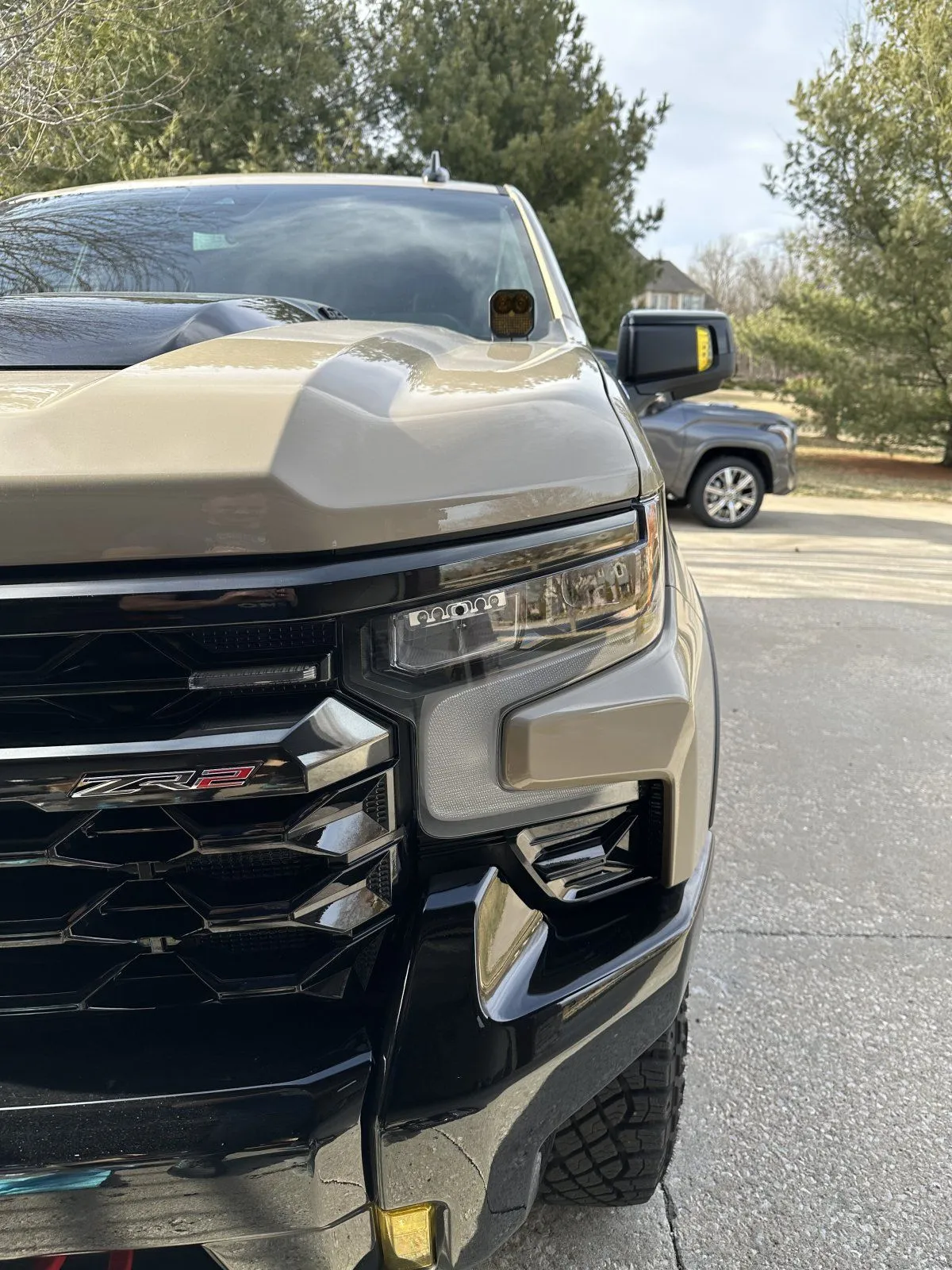

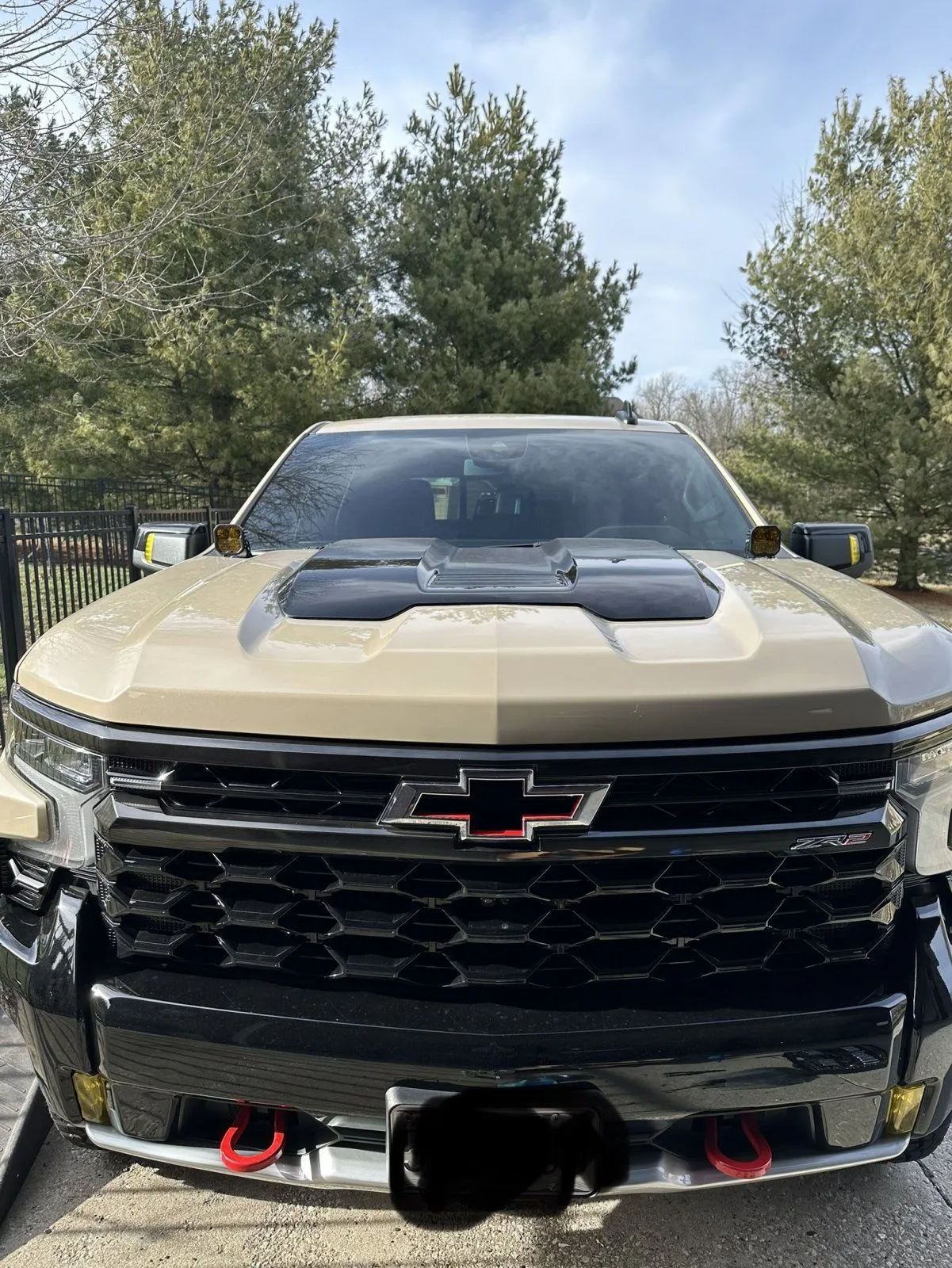

I took the plunge today and installed a set of Diode Dynamics SS3 Sport Combo lights. They are mounted on Putco brackets and I utilized the GM/Baja Designs wiring harness that includes a wireless remote. I was able to install these without any drilling or permanent modifications to the truck. Part list:

-Diode Dynamics SS3 combo yellow pod lights
- Putco pod light mounting brackets
- GM/Baja Designs remote capable wiring harness
- Larsen Lights Deutsch to Weatherpak conversion kit (x2)



[newcarpro]

View attachment 1870

What do you have by the high beams in the driver side headlight?



[ZR2EDDYB]

What do you have by the high beams in the driver side headlight?

It is a tag for an automatic gate.



[newcarpro]

It is a tag for an automatic gate.

TY, I couldn't figure it out.



[Onyxzr2]

Hey, can you confirm the Putco bracket model. is it the part #2220? does it affect in any way the windshield wipers, or hit the hood when you open the hood? tnx.



[ZR2EDDYB]

Hey, can you confirm the Putco bracket model. is it the part #2220? does it affect in any way the windshield wipers, or hit the hood when you open the hood? tnx.

Yes, 2220 looks like the correct part number.

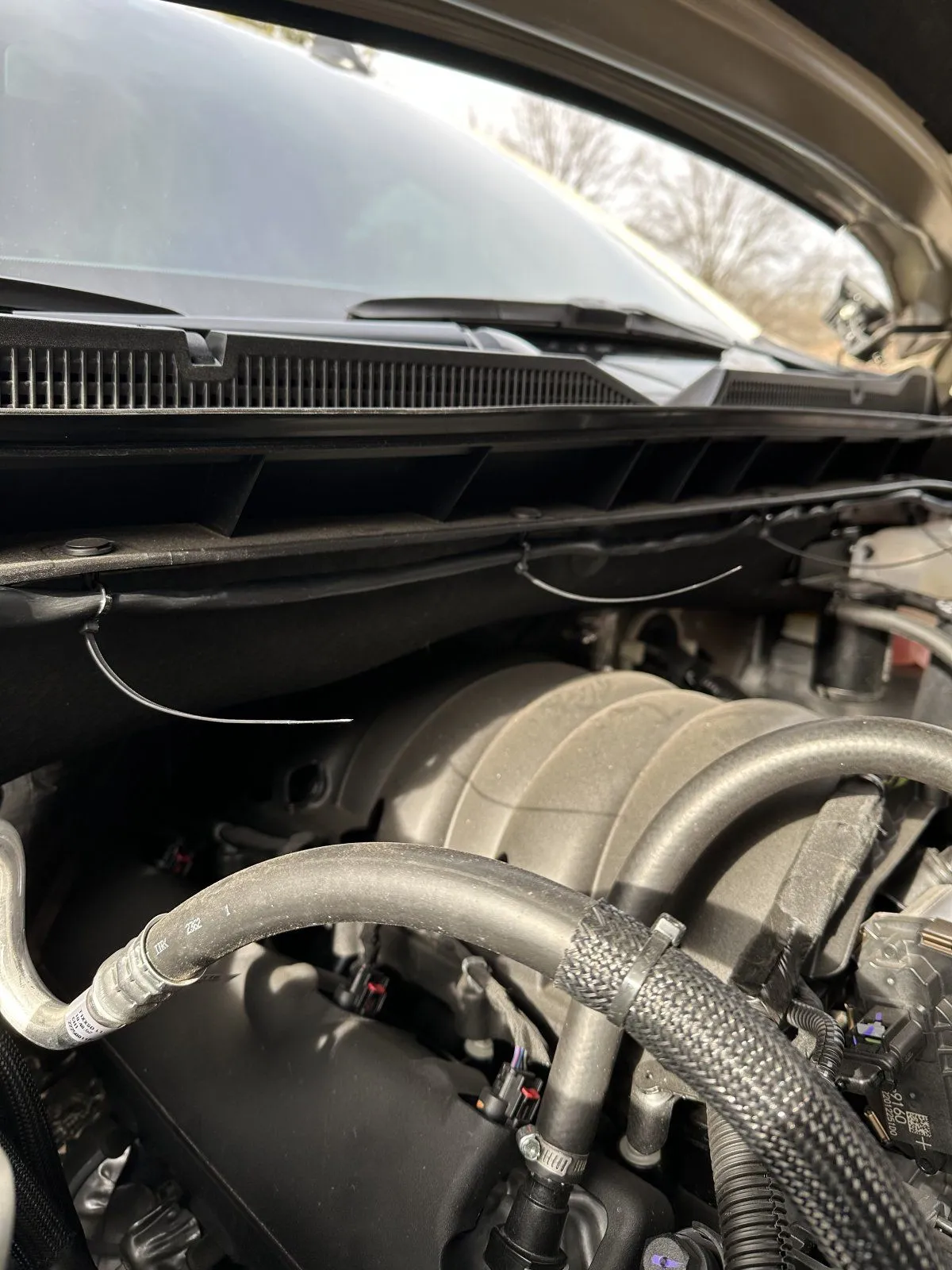

I did not have any contact with the bracket and wiper blade or hood. I did have to secure the wiring from the lights to the bracket.



[Onyxzr2]

Thank you for the reply. And do you get alot of hood glare as another member stated?



[securityguy]

I took the plunge today and installed a set of Diode Dynamics SS3 Sport Combo lights. They are mounted on Putco brackets and I utilized the GM/Baja Designs wiring harness that includes a wireless remote. I was able to install these without any drilling or permanent modifications to the truck. Part list:

-Diode Dynamics SS3 combo yellow pod lights
- Putco pod light mounting brackets
- GM/Baja Designs remote capable wiring harness
- Larsen Lights Deutsch to Weatherpak conversion kit (x2)

View attachment 1865View attachment 1866View attachment 1867View attachment 1868View attachment 1870View attachment 1871View attachment 1872

You're cutting all of those wire tie ends off...right?



[scubatech]

You're cutting all of those wire tie ends off...right?

Those ends are little razors. In the scuba repair world we cut them even with a razor blade. When I used to be a mechanic I would get bloody arms from them, LOL.



[ZR2EDDYB]

Thank you for the reply. And do you get alot of hood glare as another member stated?

With the placement of these brackets, it positions the lights over the hood. It does light the hood up, but I wouldn’t call it glare.



[ZR2EDDYB]

You're cutting all of those wire tie ends off...right?

I prefer to keep them long to compensate.

Of course I cut them off.



[slicer]

Those ends are little razors. In the scuba repair world we cut them even with a razor blade. When I used to be a mechanic I would get bloody arms from them, LOL.

I'm a diver, and I use fingernail clippers. Smoooth, better than razor blades.



[slicer]

@OP - can you tell me more about the - GM/Baja Designs remote capable wiring harness?

I googled it and didn't see a clear result of what that was.



[ZR2EDDYB]

@OP - can you tell me more about the - GM/Baja Designs remote capable wiring harness?

I googled it and didn't see a clear result of what that was.

2019-2024 GM Wire Harness (baja Design Off-road 19369744 | GmPW

2019-2024 GM part # 19369744 - Wire Harness (baja Design Off-road

www.gmpartswarehouse.com

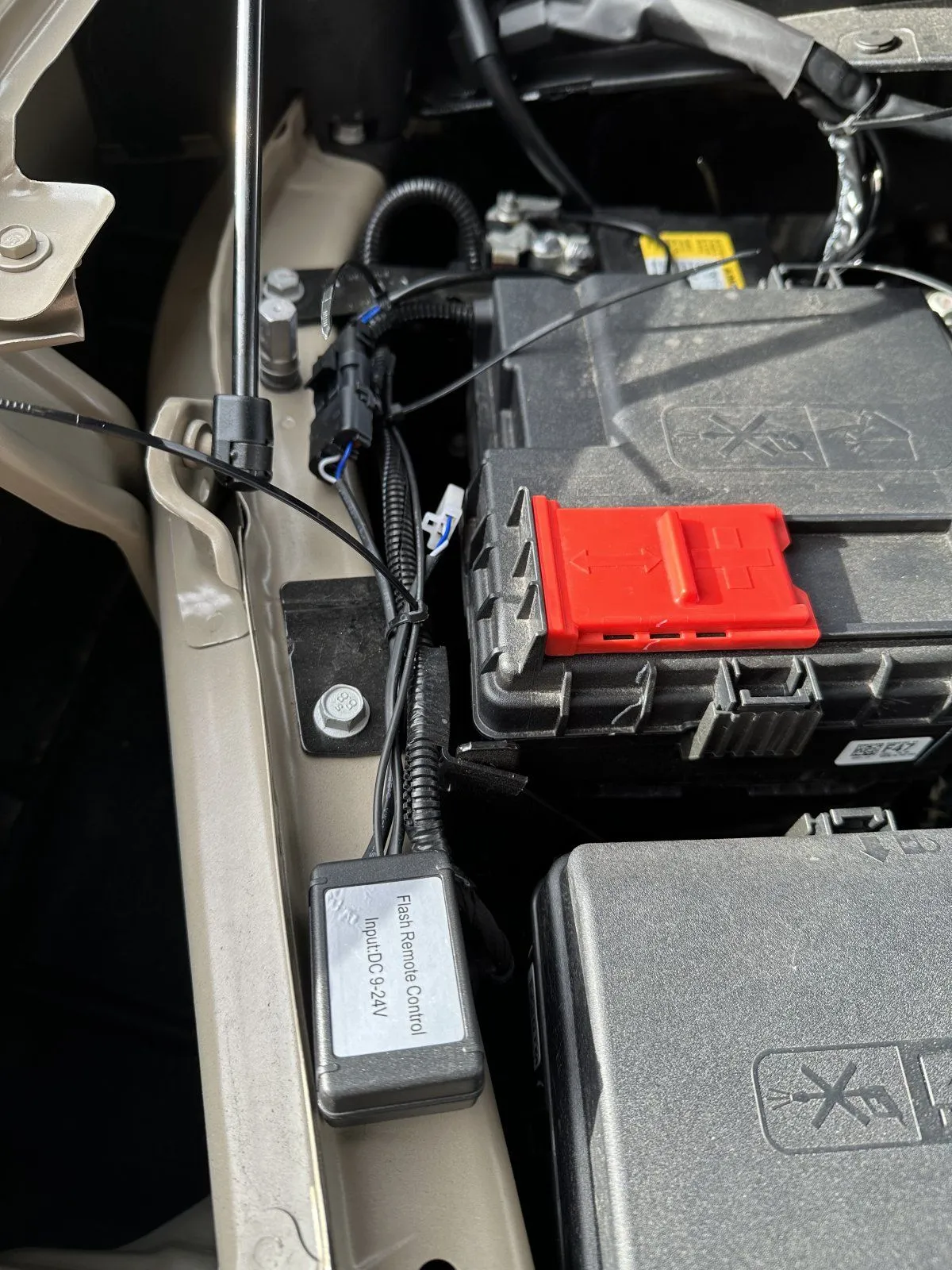

The above shows a decent picture. The harness doesn’t require a cable run to the cab. There is a remote relay mounted under the hood to activate the lights. I am able to turn on and off by remote control provided with the kit.



[Bison 650]

I took the plunge today and installed a set of Diode Dynamics SS3 Sport Combo lights. They are mounted on Putco brackets and I utilized the GM/Baja Designs wiring harness that includes a wireless remote. I was able to install these without any drilling or permanent modifications to the truck. Part list:

-Diode Dynamics SS3 combo yellow pod lights
- Putco pod light mounting brackets
- GM/Baja Designs remote capable wiring harness
- Larsen Lights Deutsch to Weatherpak conversion kit (x2)

View attachment 1865View attachment 1866View attachment 1867View attachment 1868View attachment 1870View attachment 1871View attachment 1872

Nice! Can you please take close ups of the Putco mounts and how they attach to your truck? Thanks.



[ZR2EDDYB]

Nice! Can you please take close ups of the Putco mounts and how they attach to your truck? Thanks.

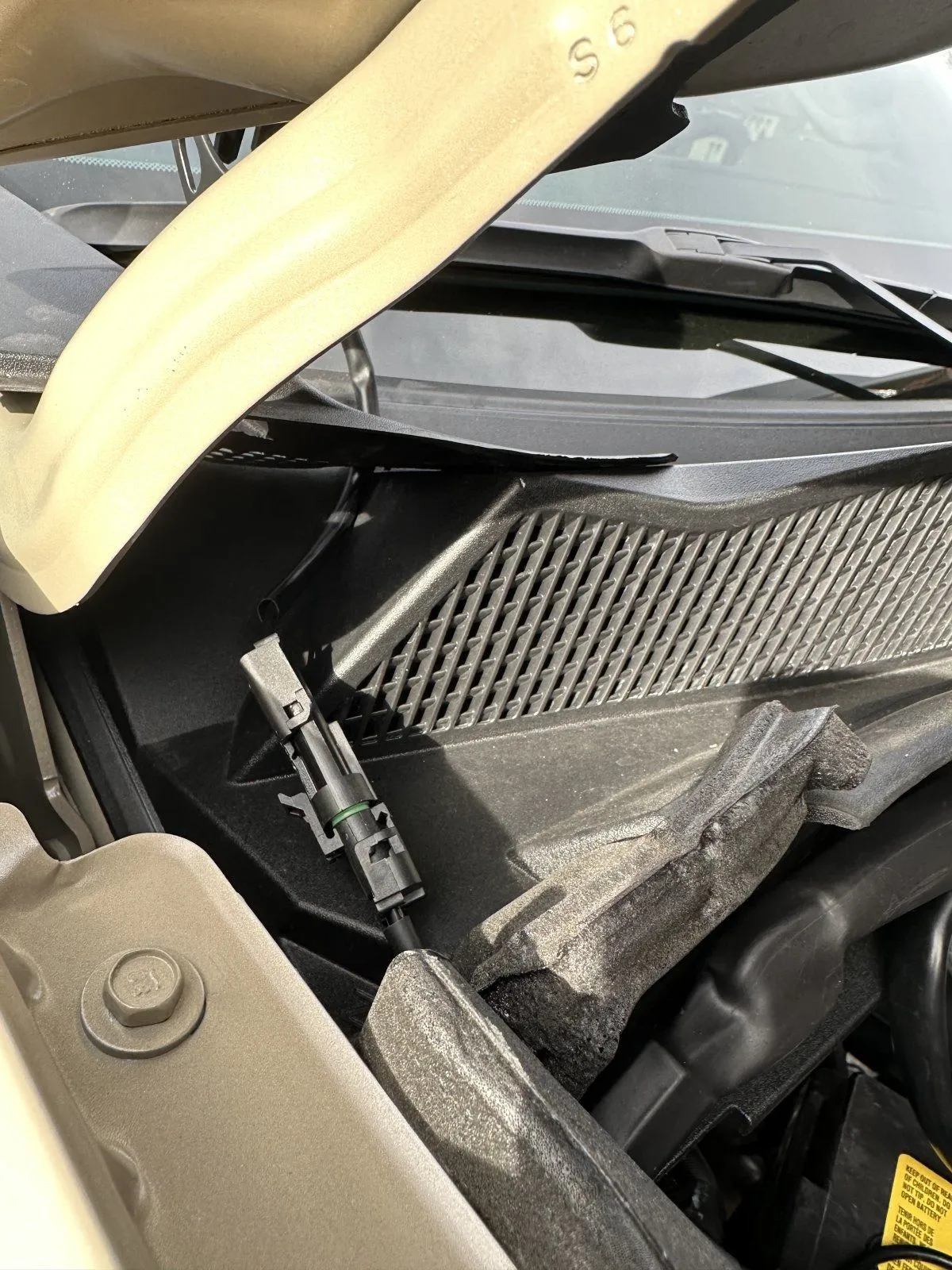

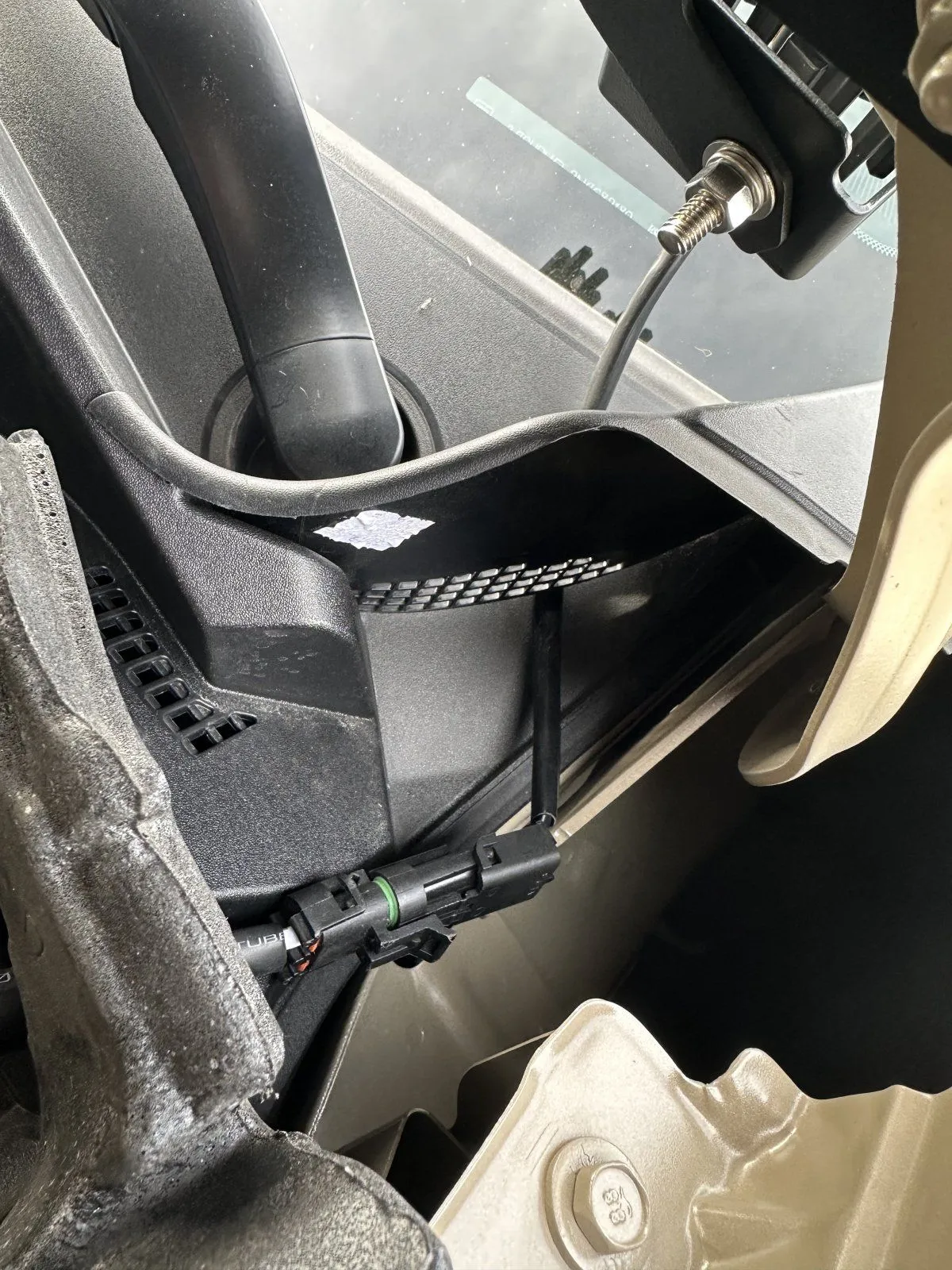

They mount between the hood and the hinge bracket.
